1-35KV Cu/Al XLPE SWA/STA Armored Power Cable

1.Voltage：1-35kv, 2.Conductor：Aluminum/Copper ,3.insulation：XLPE ,4. sheath：PVC/PE Armor：SWA/STA

Introduction Interrelated Quotation

Tel:+86-371-6676-6667 / E-mail:sales@hlcables.com

Introduction

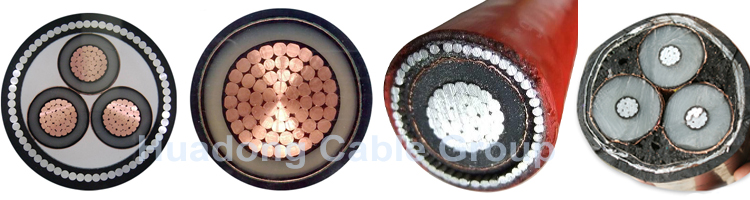

1-35KV Cu/Al XLPE insulated SWA/STA Armored Power Cable Description:

1. Construction Characteristics:

Rated Voltage Uo/U (Um): 1/35kv Volts–S5467 IEC60502-1 ; Conductor cross-section:25mm2-800mm2; Conductor material: Copper/Aluminum–IEC60228 ;

Conductor flexibility: Stranded class 2 ; Insulation: XLPE (Cross-linked Polyethylene)–IEC60502; Inner sheath: PVC-IEC60502

Armour type: Galvanized steel wires/steel tape; Outer sheath: PVC /PE– IEC60502 Colour: Black ; Lead free: Yes

2. Usage Characteristics:

Minimum installation temperature: 0°C ;Maximum installation temperature: +60°C; Installation type: Outdoor – Direct burial;

Minimum operating temperature:-15°C Maximum operating temperature: 90°C; Short-circuit max. conductor temperature: 250°C;

Flame retardant: BS EN 60332 / IEC 60332-1

1-35kv Cu/AL XLPE insulated SWA/STA armoured Power Cable Parameter:

Part Number	Cross Section	Stranding	Approx Weight	Approx Overall Diameter	Gland Size	Single Cleat	Nom. Max. DC-resist conductor 20° C	Current rating laid direct
Part Number	(mm²)	(mm)	KG/KM	(mm)	(mm)		(Ohm/km)	(Amp)
11KVPVC3X16	3 x 16	7/1.70	3440	44.3	40	1.8	1.15	119
11KVPVC3X25	3 x 25	7/2.14	4060	48.5	50	2	0.727	152
11KVPVC3X35	3 x 35	7/2.52	4495	50.5	50	R9	0.524	181
11KVPVC3X50	3 x 50	19/1.78	5115	53	63s	R9	0.387	213
11KVPVC3X70	3 x 70	19/2.14	6035	56.8	63s	R10	0.268	260
11KVPVC3X95	3 x 95	19/2.52	7180	61.3	63	R10	0.193	309
11KVPVC3X120	3 x 120	37/2.03	8280	65.1	75s	R11	0.153	349
11KVPVC3X150	3 x 150	37/2.25	9325	66.8	75s	R11	0.124	390
11KVPVC3X185	3 x 185	37/2.52	10740	72.3	75	R12	0.0991	436
11KVPVC3X240	3 x 240	61/2.52	13820	79.3	90	R14	0.0754	499
11KVPVC3X300	3 x 300	61/2.85	16120	84.2	90	R15	0.0754	553
11KVPVC3X400	3 x 400	61/3.20	19350	92.4		R15	0.047	619

1-35KV Cu/AL XLPE insulated SWA/STA Armoured Power Cable Type:

TYPE		Description of Cable	Main Applications
CU core	AL core	Description of Cable	Main Applications
VV22	VLV22	Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable	Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces.
VV23	VLV23	Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable
VV32	VLV32	Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable	Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces.
VV33	VLV33	Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable
VV42	VLV42	Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable	Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces.
VV43	VLV43	Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable
YJV₂₂	YJLV₂₂	XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable	For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force.
YJV₂₃	YJLV₂₃
YJV₃₂	YJLV₃₂	XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable	For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force.
YJV₃₃	YJLV₃₃
YJV₄₂	YJLV₄₂	XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable	Able to bear positive pressure and pulling force
YJV₄₃	YJLV₄₃		Able to bear positive pressure and pulling force
